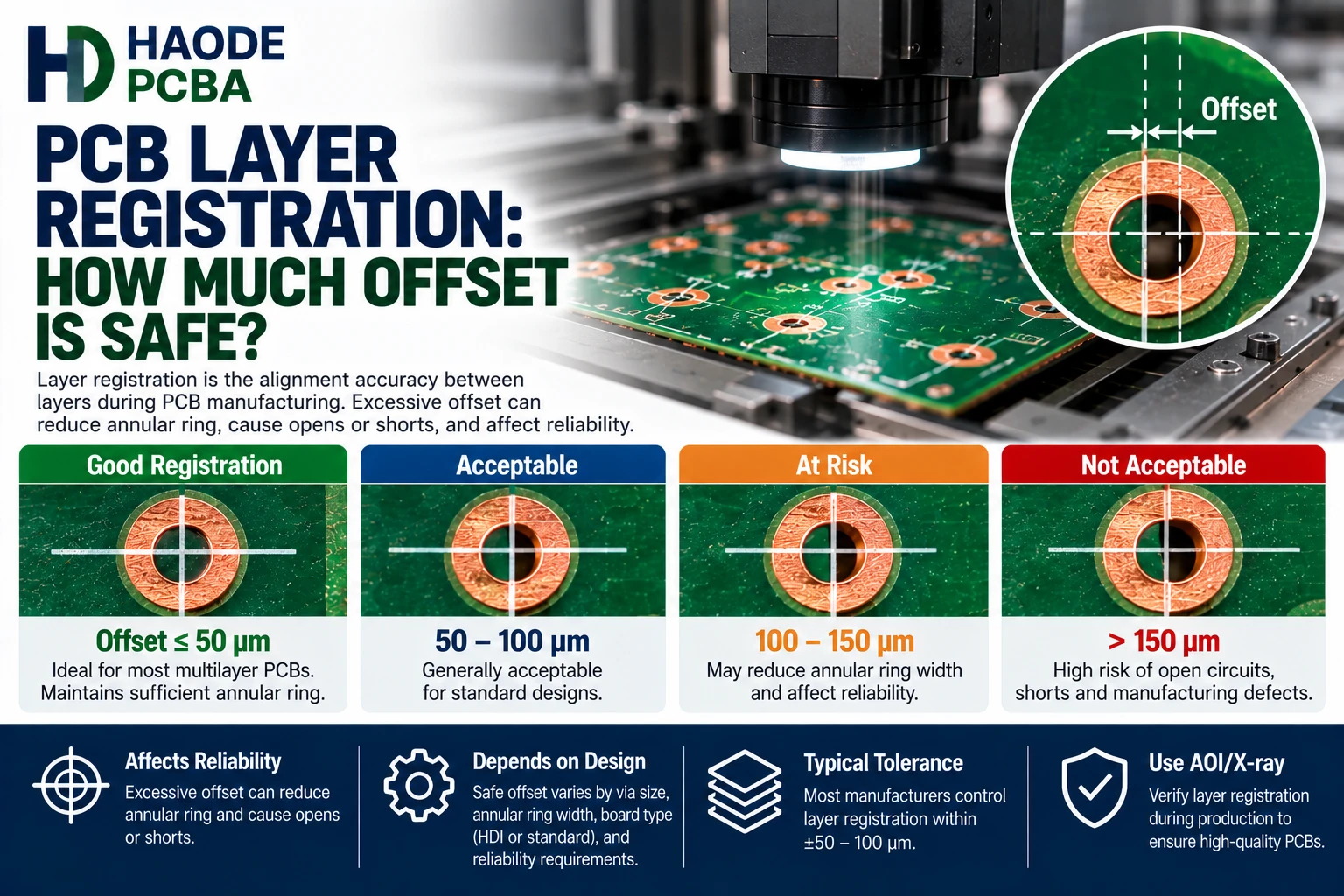

PCB layer registration controls how accurately copper patterns, drilled holes, laser microvias, pads, and plane clearances align across a multilayer board. However, there is no universal offset value that makes every PCB acceptable.
A 75 µm offset may leave enough copper on a large through-hole pad but cause a small microvia to miss its target land. Likewise, a plated hole can retain an acceptable annular ring while moving too close to an unrelated internal plane.
Therefore, registration acceptance must consider:
- Which features moved
- The direction of movement
- Available pad and clearance margin
- Finished hole or microvia dimensions
- Layer count and lamination sequence
- Applicable IPC class and revision
- Customer drawing requirements
- Electrical and reliability consequences
The correct question is not simply, “How many microns did the layer move?” Instead, buyers should ask, “What functional copper or dielectric margin remains after all registration errors combine?”
What Is PCB Layer Registration?
PCB layer registration is the positional relationship between features on different copper layers and between those features and later drilling operations.
The term can describe several different conditions:
| Registration Type | Features Being Compared | Typical Risk |
|---|---|---|
| Layer-To-Layer Registration | Copper image on one layer versus another layer | Plane, pad, and conductor misalignment |
| Drill-To-Inner-Layer Registration | Mechanical hole versus internal pad or clearance | Reduced annular ring or plane short |
| Drill-To-Outer-Layer Registration | Mechanical hole versus outer pad | Breakout, connector misalignment, reduced land |
| Microvia-To-Target Registration | Laser-drilled via versus buried target pad | Partial landing or missed target |
| Microvia-To-Capture Registration | Laser opening versus surface capture land | Reduced surface copper or pad asymmetry |
| Solder Mask Registration | Mask opening versus copper pad | Exposed or covered pad area |
These errors can occur independently. Therefore, a supplier statement such as “registration is within 75 µm” remains incomplete unless it identifies the feature pair, measurement method, statistical basis, and inspection condition.
What Is The Difference Between Registration And Annular Ring?
Registration describes position. Annular ring describes the copper remaining around a drilled or plated hole.
They are related but not identical.
A large pad can tolerate more positional error while retaining copper. Conversely, a small pad may lose its annular ring after a much smaller offset.
A simplified nominal radial margin is:
Nominal Radial Margin = (Pad Diameter − Drill Diameter) ÷ 2
For example:
- Pad diameter: 0.55 mm
- Nominal drill diameter: 0.30 mm
- Nominal radial margin: 0.125 mm
If the combined positional and dimensional error consumes 0.10 mm on one side, only approximately 0.025 mm remains on that side.
However, this simplified calculation does not include:
- Drill-size tolerance
- Plating thickness
- Pad etching tolerance
- Layer scaling
- Lamination movement
- Drill wander
- Measurement uncertainty
Therefore, designers should not use the nominal annular ring as the complete registration budget.
Our PCB drill size vs finished hole size article explains why the fabrication drill and finished plated-hole dimensions differ.
Which PCB Registration Errors Should Buyers Separate?
A meaningful inspection report separates three main error chains.
Inner-Layer Image Registration
This error occurs when copper patterns on different layers do not align as intended.
Possible movement includes:
- X-axis translation
- Y-axis translation
- Rotation
- Uniform expansion or shrinkage
- Nonuniform panel distortion
- Local stretching
- Skew
- Edge-to-center variation
A single global X/Y correction may solve translation and uniform scale errors. However, it cannot fully correct nonlinear material distortion.
Mechanical Drill Registration
Mechanical drilling must align the hole pattern with internal and external copper features.
The final position depends on:
- Inner-layer alignment
- Lamination movement
- X-ray target detection
- Drill-program compensation
- Machine calibration
- Tool deflection
- Panel stack height
- Entry and backup materials
- Drill-bit condition
Therefore, a hole can miss an internal pad even when the outer pad looks centered.
Laser Microvia Registration
A laser microvia must land on the intended target pad without damaging the adjacent dielectric.
Laser-drilling equipment commonly uses fiducials, skived targets, or previously formed holes to align and scale the drill program.
An IPC technical paper notes that registration is essential because a laser that misses the target pad can create a fissure beside the pad that later becomes difficult to plate.
The laser opening may also appear centered at the surface while the smaller microvia base approaches the edge of the buried target.
How Much PCB Layer Registration Error Is Acceptable?
The applicable fabrication drawing and performance standard should determine acceptance.
A universal number cannot account for differences in:
- Pad diameter
- Finished hole size
- Microvia base diameter
- Target-pad size
- Internal clearance
- Copper weight
- Plating class
- Product reliability
- Layer count
- Board dimensions
IPC-6012F added and expanded criteria for hole registration, internal plated layers, dielectric spacing, microsection evaluation, and complex via structures.
However, stating only “IPC-6012F” may still be insufficient. The procurement package should identify:
- IPC performance class
- Applicable revision
- Relevant addendum
- Customer-specific registration requirements
- Measurement method
- Sampling plan
- Critical local features
A medical, automotive, aerospace, or high-layer-count server PCB may require tighter project controls than a low-density commercial board.
Why “No Annular Ring Breakout” Is Not Enough
An acceptable annular ring addresses only one possible consequence of misregistration.
A shifted hole or layer can also affect:
- Internal plane clearance
- Trace-to-hole spacing
- Creepage or clearance
- Backdrill alignment
- Press-fit connector fit
- Differential-pair geometry
- Thermal spoke symmetry
- Anti-pad position
- Microvia target contact
- Pad-to-pad spacing
For example, a via may move toward one edge of its pad while still retaining copper. At the same time, it may move dangerously close to an unrelated internal copper plane.
Therefore, the inspection plan should evaluate both:
- Copper connection to the intended pad
- Dielectric separation from unintended copper
This distinction becomes critical in dense multilayer designs where plane clearances can be more restrictive than annular-ring requirements.
How Does Sequential Lamination Affect PCB Layer Registration?
Each lamination cycle creates another opportunity for material movement and alignment error.
In a conventional multilayer PCB, the manufacturer aligns the prepared inner layers before the main press cycle. In a sequentially laminated HDI board, the factory repeatedly adds dielectric and copper, presses the panel, images new layers, and forms new vias.
As a result, registration errors can accumulate across:
- Core lamination
- Buried-via drilling
- Additional build-up lamination
- Laser drilling
- Copper filling
- Further build-up cycles
- Final through-hole drilling
The PCB sequential lamination process should therefore define which fiducials or drilled targets control every stage.
More cycles do not automatically produce unacceptable registration. However, they require stronger scaling, compensation, and verification controls.
What Causes Inner-Layer Movement During Lamination?
Inner-layer movement does not come from one source.
Material Expansion And Shrinkage
Copper-clad laminate can change dimensions during:
- Imaging
- Etching
- Oxide or alternative oxide treatment
- Heating
- Resin cure
- Cooling
- Moisture changes
The manufacturer may apply scaling compensation based on material type, copper pattern, layer position, and historical production data.
Resin Flow
During pressing, softened resin flows around copper features. Uneven resin flow can move or distort layers, especially when copper density varies significantly across the panel.
Copper Imbalance
Dense copper on one area and sparse routing elsewhere can create unequal stress and movement.
Glass-Weave Behavior
Glass style, resin content, orientation, and dielectric construction affect dimensional stability.
Layup Alignment
Pin systems, optical systems, welded inner-layer sets, and other tooling methods help maintain the initial position before pressing.
Press Parameters
Temperature, pressure, vacuum, heating rate, cure time, and cooling affect panel movement.
The approved multilayer PCB stackup should include the material construction used to develop production compensation values.
Why Equipment Accuracy Does Not Equal Finished PCB Registration
Equipment specifications normally describe performance under defined machine conditions. Finished-board registration includes the entire process.
For example, KLA reports registration accuracy of ±5 µm for a specific advanced direct-imaging platform.
However, that figure does not mean every finished PCB produced with the equipment achieves ±5 µm layer-to-layer registration.
The final result can also include:
- Material dimensional change
- Fiducial quality
- Panel distortion
- Etching variation
- Layup error
- Lamination movement
- Drilling error
- Measurement uncertainty
Therefore, a supplier should support a finished-board capability claim with production measurements, not only an equipment brochure.
A statement such as “our laser accuracy is 20 µm” also does not prove that the laser-drilled microvia lands within 20 µm of the buried target pad. The target layer may already have moved before laser drilling begins.
How Is PCB Layer Registration Controlled?
Manufacturers control registration at several stages.
CAM Compensation
CAM engineers review:
- Layer scaling
- Panel size
- Copper distribution
- Drill-to-copper relationships
- Critical clearances
- Sequential build-up
- Material history
They may apply different X- and Y-axis compensation values to individual layers.
Inner-Layer AOI
Automated optical inspection verifies the etched inner-layer image before lamination.
AOI can detect missing, excess, shorted, or open copper. It can also confirm whether registration targets and critical patterns remain within the intended image.
However, AOI occurs before the layers experience final lamination movement.
Layup Registration
The factory aligns layers through tooling holes, optical targets, pinless systems, or welded inner-layer sets.
X-Ray Drill Optimization
After lamination, X-ray equipment locates buried copper targets. The manufacturer can then adjust the mechanical drill program to match the actual laminated panel rather than relying only on nominal artwork coordinates.
Direct Imaging
Direct imaging can scale or distort the outer-layer image to match the actual panel condition.
Laser Vision Alignment
Laser-drilling equipment can detect fiducials and adjust the microvia program for translation, scale, rotation, and other supported corrections.
Each method controls one stage. No single stage removes the need to manage the complete registration chain.
Why Can One Microsection Give A Misleading Result?
A microsection shows registration only along the cut direction.
Suppose a drilled hole moves mainly along the Y-axis. If the laboratory sections the hole along the X-axis, the hole may appear nearly centered.
Likewise, an off-center cut through a round hole can change the apparent:
- Hole diameter
- Annular ring
- Pad diameter
- Microvia wall angle
- Target-pad contact
Therefore, a reliable PCB microsection plan may require:
- Defined section orientation
- Orthogonal cuts
- Registration coupons
- Several panel locations
- Raw scaled images
- Confirmation that the cut crosses the true feature center
A single attractive cross-section should not replace quantitative registration data.
How Should PCB Layer Registration Be Measured?
The method should match the feature being evaluated.
| Measurement Method | Best Use | Limitation |
|---|---|---|
| X-Ray Registration Coupon | Drill-to-inner-layer and layer-position evaluation | Depends on coupon representativeness |
| Microsection | Annular ring, microvia landing, internal separation | Destructive and sample limited |
| Inner-Layer AOI Data | Pre-lamination image and target inspection | Does not include later material movement |
| Optical Fiducial Measurement | Surface image and laser alignment | Cannot directly inspect hidden internal features |
| 3D X-Ray Or CT | Spatial relationships in complex structures | Resolution and copper overlap may limit interpretation |
| Electrical Test | Detects opens and shorts caused by severe misregistration | May not detect reduced reliability margin |
| Statistical Registration Coupon | Process distribution and layer trends | Requires planned coupon placement |
The measurement report should distinguish:
- Nominal design center
- Actual feature center
- X-axis offset
- Y-axis offset
- Resultant radial offset
- Remaining copper
- Remaining clearance
- Layer number
- Panel location
Reporting only the resultant offset can hide a systematic directional trend.
What Is Resultant Registration Offset?
If the measured X and Y offsets are known, the radial or resultant offset can be estimated as:
Resultant Offset = √(X² + Y²)
For example:
- X offset: 40 µm
- Y offset: 30 µm
- Resultant offset: 50 µm
However, this number still does not determine acceptance by itself.
The buyer must compare it with:
- Pad-to-hole margin
- Target-pad contact
- Plane clearance
- Adjacent conductor spacing
- Drawing requirements
Additionally, rotation and nonlinear distortion may cause the offset to change across the panel. Therefore, a center-panel measurement cannot automatically represent every corner.
Why Does Panel Position Matter?
Registration may vary between:
- Panel center
- Panel edges
- Corners
- Different image fields
- High-copper areas
- Low-copper areas
- Units near tooling features
A global average can conceal a worst-case local condition.
For example, measurements from the panel center may show excellent alignment while corner units experience scale or skew error.
Therefore, sampling should include:
- Center location
- Edge locations
- Panel corners
- Dense copper regions
- Critical HDI or connector areas
- Registration coupons near production units
A panel map provides more useful evidence than one overall average.
How Does PCB Warpage Affect Registration Measurement?
A warped panel can change how optical or mechanical equipment references the surface.
It can also affect:
- Focus
- Fiducial recognition
- Laser position
- Mechanical support
- Drill entry
- Measurement repeatability
However, warpage and in-plane registration remain different characteristics. Flattening a panel during inspection does not correct internal layer displacement.
The PCB warpage requirement should therefore complement, not replace, layer-registration control.
Why Are Microvia Targets More Sensitive?
Microvias use smaller target pads and tighter routing geometry than many conventional through holes.
A microvia can fail in several ways:
- The base lands partially on the target
- The laser removes dielectric beside the target
- The remaining target contact becomes too narrow
- Metallization does not cover the irregular interface
- Thermal stress separates the reduced contact area
- An upper stacked via adds stress to the weak interface
Therefore, the buyer should evaluate the actual microvia-to-target contact rather than only the surface capture-pad appearance.
The PCB microvia reliability risk increases when registration loss combines with residue, weak metallization, copper-fill defects, or repeated thermal stress.
Stacked structures also require alignment between successive filled levels. The stacked vs staggered microvias decision should include the supplier’s demonstrated registration capability.
How Should Registration Capability Be Reported?
A useful capability statement should define:
- Feature type
- Layer pair
- Nominal pad and hole dimensions
- Measurement method
- Panel size
- Material
- Layer count
- Sample quantity
- X and Y averages
- Standard deviation
- Maximum observed offset
- Panel-position distribution
- Production time period
- Whether values represent prototypes or volume production
Statements such as these remain incomplete:
- Registration tolerance is ±75 µm.
- Laser accuracy is ±20 µm.
- Annular ring meets IPC.
- Our equipment supports HDI.
- All holes are centered.
Instead, request a statement such as:
For the proposed 2+6+2 stackup and panel size, provide measured microvia-to-target and mechanical-drill-to-inner-pad registration data from comparable production, including sample size, panel locations, maximum offset, and process capability.
Average Versus Maximum
An average can look acceptable while a small number of units exceed the drawing limit.
Therefore, buyers should request:
- Average
- Range
- Standard deviation
- Maximum
- Failure count
- Process capability, when statistically valid
A capable process needs both accurate centering and controlled variation.
How Can Designers Improve Registration Margin?
Increase Pad Diameter
A larger pad increases the available positional margin. However, it may reduce routing space and affect impedance.
Increase Internal Clearance
Larger anti-pads and plane clearances reduce the risk of unintended contact. However, they may disturb plane continuity.
Reduce Unnecessary Layer Transitions
Every via transition creates another alignment relationship.
Use A Balanced Stackup
A balanced construction can reduce distortion and warpage during lamination.
Avoid Extremely Dense Local Copper Imbalance
Regional copper differences can contribute to uneven material movement.
Review The Actual Panel
Board dimensions, array orientation, rails, tooling targets, and copper distribution all influence registration capability.
Match Feature Sizes To Supplier Capability
Do not design from a generic online minimum. Ask the intended fabricator for production capability on the proposed material, panel size, layer count, and build-up structure.
The PCB DFM checklist should evaluate registration before routing becomes dependent on minimum pads and clearances.
How Should PCB Layer Registration Be Specified?
The fabrication drawing should identify:
- Applicable IPC standard and revision
- Performance class
- Critical pad and hole dimensions
- Minimum functional annular ring
- Required internal copper clearance
- Microvia target-contact requirement
- Backdrill registration requirement
- Measurement method
- Coupon design
- Sampling locations
- Sample quantity
- Reporting format
- Any tighter local requirement
Avoid writing only:
- No breakout allowed
- All layers must align
- Registration must meet IPC
- Use standard tolerance
- Microvias must be centered
These notes do not define how to measure the result or which feature controls acceptance.
The controlled PCB assembly file requirements should include the stackup, drill table, via layer pairs, fabrication drawing, panel data, and matching revisions.
What Should Buyers Check During First Article Inspection?
First-article inspection should confirm the final PCB, not only the supplier’s generic capability.
Review:
- Registration coupon results
- X-ray drill optimization records
- Inner-layer AOI results
- Mechanical-hole alignment
- Microvia target landing
- Remaining annular ring
- Internal plane clearances
- Panel-position variation
- Microsection orientation
- Deviations from the approved stackup
- Electrical test results
- Thermal test results for critical microvias
A structured PCBA first article inspection should connect dimensional findings with the actual component, connector, and assembly requirements.
PCB Layer Registration DFM Checklist
Before releasing the PCB, verify:
- Are pad diameters based on the actual drill tolerance?
- Does the design include layer-registration allowance?
- Are internal plane clearances large enough?
- Are microvia target pads compatible with supplier capability?
- Does every stacked level retain sufficient landing margin?
- Are backdrilled holes included in the tolerance analysis?
- Is the stackup mechanically balanced?
- Does the panel contain suitable registration coupons?
- Are critical features located near panel edges or corners?
- Has the supplier reviewed the proposed panel size?
- Is the measurement method defined?
- Are X and Y offsets reported separately?
- Does sampling cover several panel locations?
- Does the drawing identify the IPC class and revision?
- Will first-article reports include raw images and measurements?
Resolving these questions before fabrication prevents late pad enlargement, anti-pad changes, routing loss, and unnecessary supplier rejection.
Frequently Asked Questions About PCB Layer Registration
Is PCB Layer Registration The Same As Drill Accuracy?
No. Drill accuracy describes one stage. Final registration also includes inner-layer imaging, material movement, lamination, scaling, and target detection.
What Is A Normal PCB Registration Tolerance?
There is no universal value. The acceptable tolerance depends on pad size, hole size, clearance, layer count, material, technology, and applicable performance requirements.
Can A Hole Pass Annular-Ring Inspection And Still Be Unsafe?
Yes. It may move too close to an unrelated plane, trace, or high-voltage conductor even while retaining copper on its intended pad.
Can X-Ray Inspect PCB Registration?
Yes. X-ray can measure drilled-hole relationships to buried targets and registration coupons. However, overlapping copper and limited resolution may restrict some measurements.
Why Does A Cross-Section Show A Centered Hole When X-Ray Shows Offset?
The section may not follow the direction of maximum displacement, or it may not pass through the true center of the hole.
Does Direct Imaging Eliminate Registration Error?
No. Direct imaging can compensate for panel scale and position, but it cannot remove every material, lamination, drilling, or local-distortion error.
Are Microvias More Sensitive Than Through Holes?
Often, yes. Microvias generally use smaller target pads and may rely on a limited copper interface that must survive thermal stress.
Does A Higher IPC Class Automatically Mean Tighter Registration?
Performance classes change applicable acceptance criteria, but the buyer must still specify the standard revision, technology, drawing requirements, and any critical local limits.
Should Registration Be Measured On Every Production Panel?
The required frequency depends on product risk, process capability, applicable standard, and purchase documentation. Critical HDI products may justify panel-level coupons and lot-specific reports.
Can Registration Problems Cause Intermittent Electrical Failures?
Yes. Partial microvia landing or reduced copper contact can pass room-temperature testing and later separate during reflow or thermal cycling.
Final Recommendations
PCB layer registration should be treated as a complete tolerance chain.
For reliable control:
- Separate layer-to-layer, mechanical-drill, and laser-microvia registration.
- Calculate remaining copper and dielectric margin.
- Do not rely only on nominal annular ring.
- Evaluate unintended plane and conductor clearances.
- Treat machine accuracy as one contributor, not the finished-board result.
- Use registration coupons across representative panel locations.
- Record X and Y offsets as well as resultant displacement.
- Verify critical microvia targets through suitable imaging and sectioning.
- Define standards, methods, sampling, and reporting in the drawing.
- Confirm actual production capability during first article approval.
The most useful acceptance question is:
After all image, material, lamination, and drilling errors combine, does the PCB still retain enough copper connection and dielectric separation for reliable operation?
